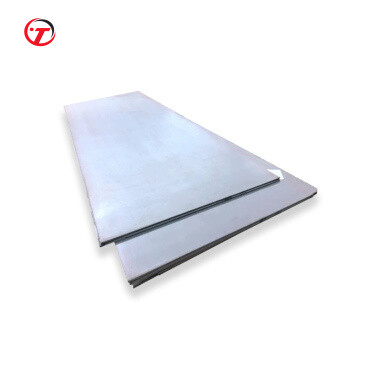

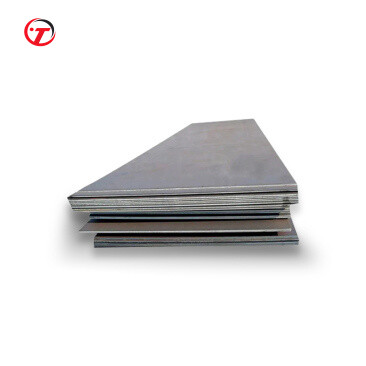

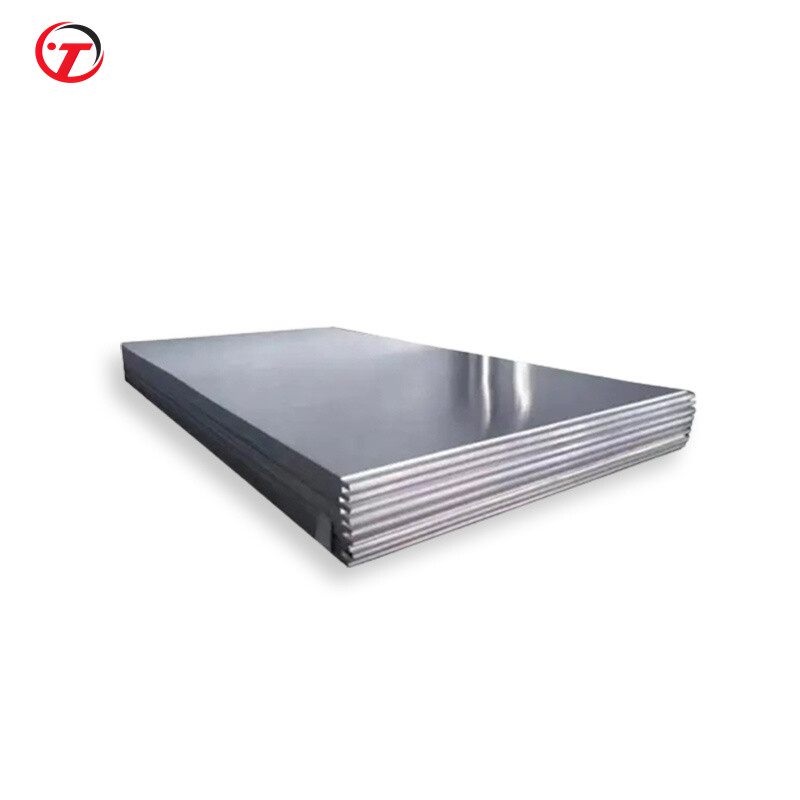

Docol 420LA High Strength Low Alloy Steel (HSLA)
Docol 420LA steel is a high-strength low-alloy steel, which can be supplied as hot-rolled steel and cold-rolled steel. It is supplied with S420MC based on EN 10149-2:2010 standard.
+8619063527255
+8619063527255
sales@tisco-ss.com
Contact Us
Product Parameters

The main alloying elements of HSLA steel include carbon, manganese, molybdenum, chromium and nickel. The nickel varies according to different HSLA steel grades. The proportion and ratio of these elements all play a crucial role in the performance of HSLA steel. Docol 420LA HSLA improves strength while maintaining good toughness, giving it superior performance in withstanding impact and tensile stress. Besides, HSLA steel has lower alloying element content, which is beneficial to the implementation of welding processes. Through reasonable control of alloying element content, HSLA steel can have a certain corrosion resistance, suitable for engineering structures in corrosive environments. Lastly, Docol 420LA HSLA has good plasticity and malleability, which is conducive to the implementation of various forming processes and reduces manufacturing costs.



Mechanical Properties

Steel GradeStandardPlatingTest DirectionYield Strength Rp0.2 (MPa)Tensile Strength Rm (MPa)Extension Rate A80( min%)Minimum Bend Inner Diameter for 90 ° Bend
Docol CR420LAVDA239- 100:2016GI, GA*, ZAL420-520480-600171.0xt
Docol HR420LAVDA239- 100:2016UC, Cam thoL420-520480-60018UC 0.5xt bottleGI 1.0xt



Chemical Composition

Steel GradePlatingC (max %)Si (max %)Mn(max %)P (max %)S(max %)Al( min%)Ti(max%)Nb(max %)Cu(max %)
Docol CR420LAGI,GA,ZA0.120.501.650.300.0250.0150.0150.100.20
Docol HR420LAUC0.120.501.600.300.0250.0150.0150.090.20
Docol HR420LAGI0.120.501.600.300.0250.0150.0150.100.20



Plating

Plating TypePlating GradeStandardSingle-sided coating quality, single-point test (g/m2)Single side thickness, for reference only(μm)
GI40/40VDA239-10040-605.6-8.5
GI50/50VDA239-10050-707.0-9.9
GI60/60VDA239-10060-908.5-12.7
GI70/70VDA239-10070-1009.9-14.1
GI85/85VDA239-10085-11512.0-16.2
GI115/115VDA239-100115-15516.2-21.8
GA40/40VDA239-10040-605.6-8.5
GA50/50VDA239-10050-807.0-11.3
ZA95As required
7-
ZA130As required
10-

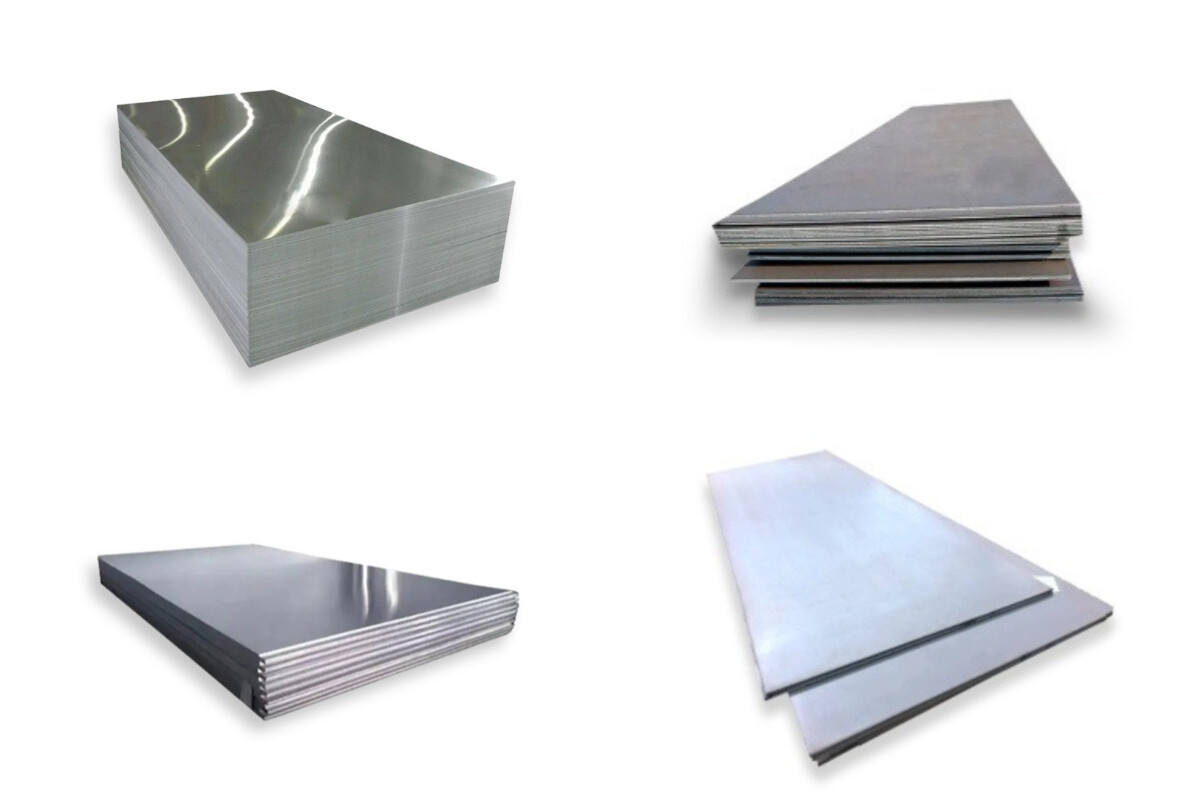

Product Display

下载 (1).jpg


Product Application

下载 (8).jpg


Product Packaging

板 (6).jpg

Factory Display
  • 5d8a75a1a100fba8a256a16d70c0890.jpg
  • 工厂 (10).jpg
  • 88aad601713043dab5867d5db81a7ff.jpg
  • 03fff439b2515c07932d6ad3c889d39.jpg
  • 2f605236267747073414d2f98f692e4.jpg
  • 1 (4).jpg
FAQ

Q: Are you trading company or manufacturer ?

A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.

Q: Will you delivery the goods on time?

A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.

Q: Do you provide samples ? Is it free or extra ?

A: The samples are free,you just need to pay the courier freight.

Q: Do you accept the third party inspection?

A: Yes, absolutely we accept.

Q: How could you guarantee your products?

A: Products are manufactured by certified workshops, inspected by professional inspector.
