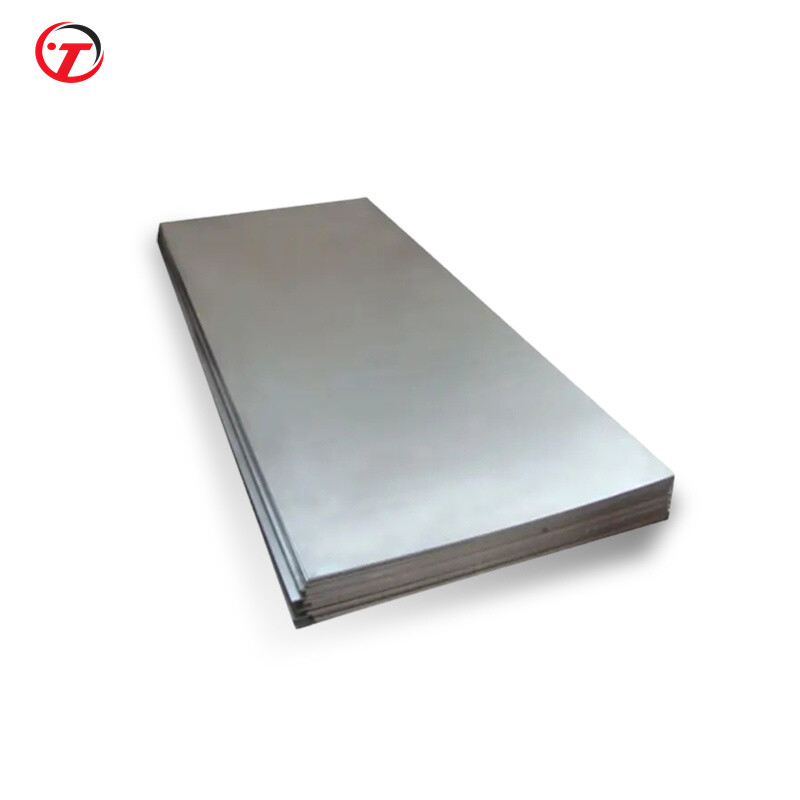

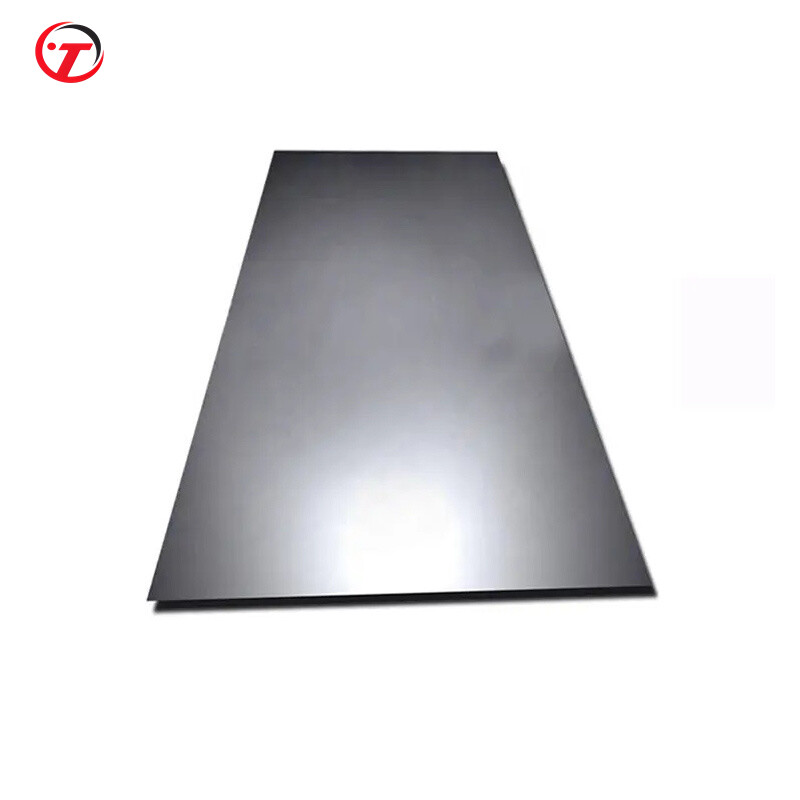

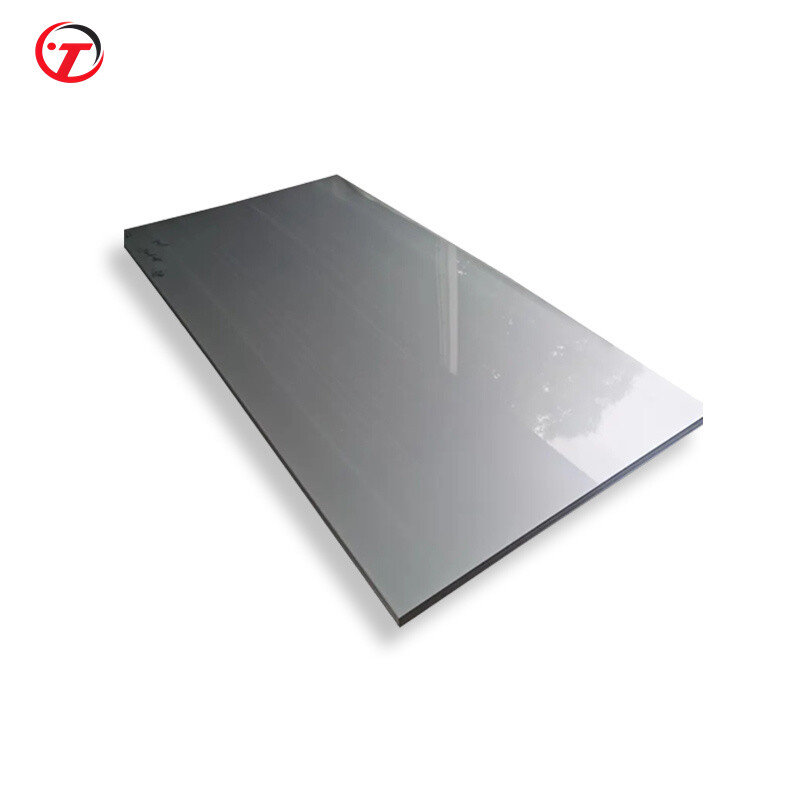

Docol 500DP Dual Phase Steel (DP)
Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase.
+8619063527255
+8619063527255
sales@tisco-ss.com
Contact Us
Product Parameters

Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase. Bainite may also be present as a complementary phase.



Mechanical Properties

Steel GradeStandardPlatingTest DirectionYield Strength Rp0.2 (MPa)Tensile Strength Rm (MPa)Extension Rate A80( min%)Minimum Bend Inner Diameter for 90 ° Bend
Docol CR290Y490T-DPVDA239- 100:2016UC, GI, GA*, FRL290-380490-60024UC 0.0xtGI, GA, FI0.5xt
Docol CR230Y500T- DLSSABUCT230-300500-600240.0xt
Docol CR290Y500T- DPSSABUCT290-370500-600200.0xt



Chemical Composition

Steel GradePlatingC (max %)Si (max %)Mn(max %)P (max %)S(max %)Al( %)Cr Mo(max%)B(max %)Nb Title(max %)
Docol CR290Y490T-DPUC0.100.501.000.0250.0100.015--0.10-
Docol CR290Y490T-DPGI,GA,ZA0.140.501.800.0500.0100.015-1.01.000.150.005
Docol CR230Y500T- DLUC0.080.401.800.0250.0100.015--0.10-
Docol CR290Y500T- DPUC0.100.501.000.0250.0100.015--0.10-



Plating

Plating TypePlating GradeStandardSingle-sided coating quality, single-point test (g/m2)Single side thickness, for reference only(μm)
GI40/40VDA239-10040-605.6-8.5
GI50/50VDA239-10050-707.0-9.9
GI60/60VDA239-10060-908.5-12.7
GI70/70VDA239-10070-1009.9-14.1
GI85/85VDA239-10085-11512.0-16.2
GI115/115VDA239-100115-15516.2-21.8
GA40/40VDA239-10040-605.6-8.5
GA50/50VDA239-10050-807.0-11.3
ZA95As required
7-
ZA130As required
10-

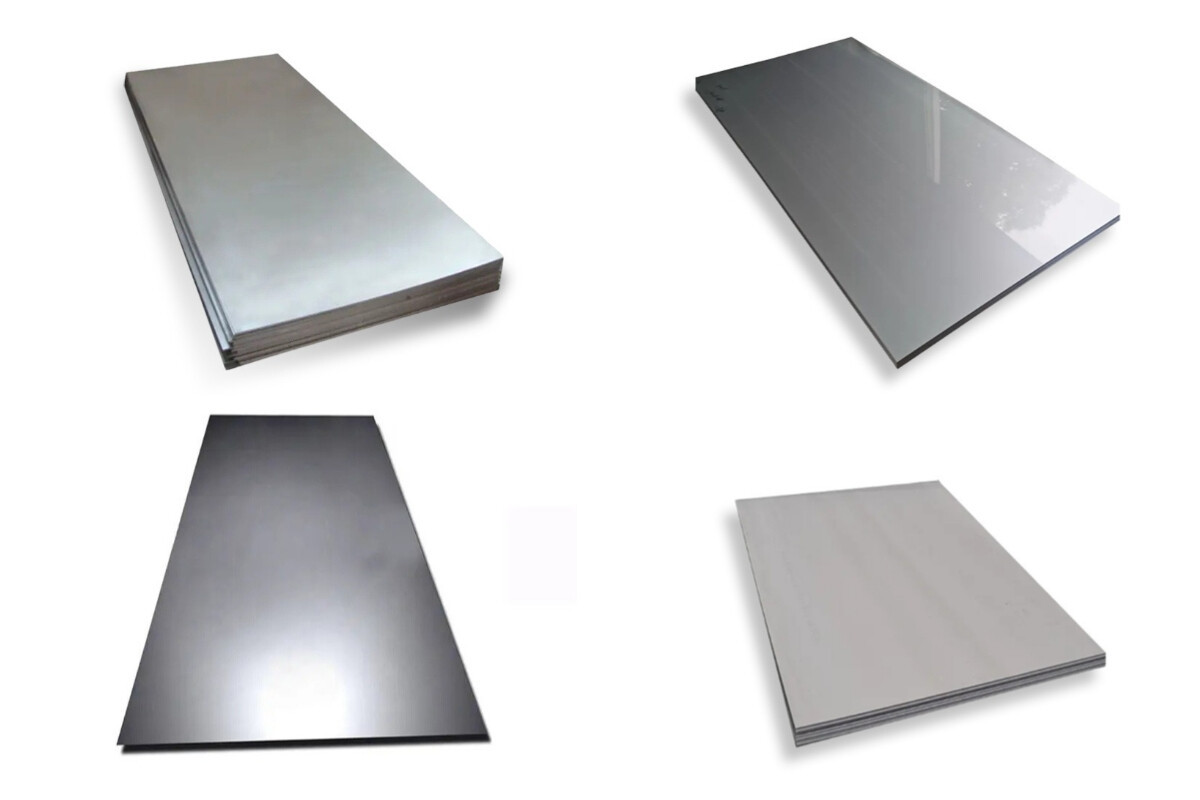

Product Display

下载 (1).jpg


Product Application

下载 (8).jpg


Product Packaging

板 (6).jpg

Factory Display
  • 5d8a75a1a100fba8a256a16d70c0890.jpg
  • 工厂 (10).jpg
  • 88aad601713043dab5867d5db81a7ff.jpg
  • 03fff439b2515c07932d6ad3c889d39.jpg
  • 2f605236267747073414d2f98f692e4.jpg
  • 1 (4).jpg
FAQ

Q: Are you trading company or manufacturer ?

A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.

Q: Will you delivery the goods on time?

A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.

Q: Do you provide samples ? Is it free or extra ?

A: The samples are free,you just need to pay the courier freight.

Q: Do you accept the third party inspection?

A: Yes, absolutely we accept.

Q: How could you guarantee your products?

A: Products are manufactured by certified workshops, inspected by professional inspector.
